3406E Crate Engine- Built to Order.
The 5EK-CERT. By Thad

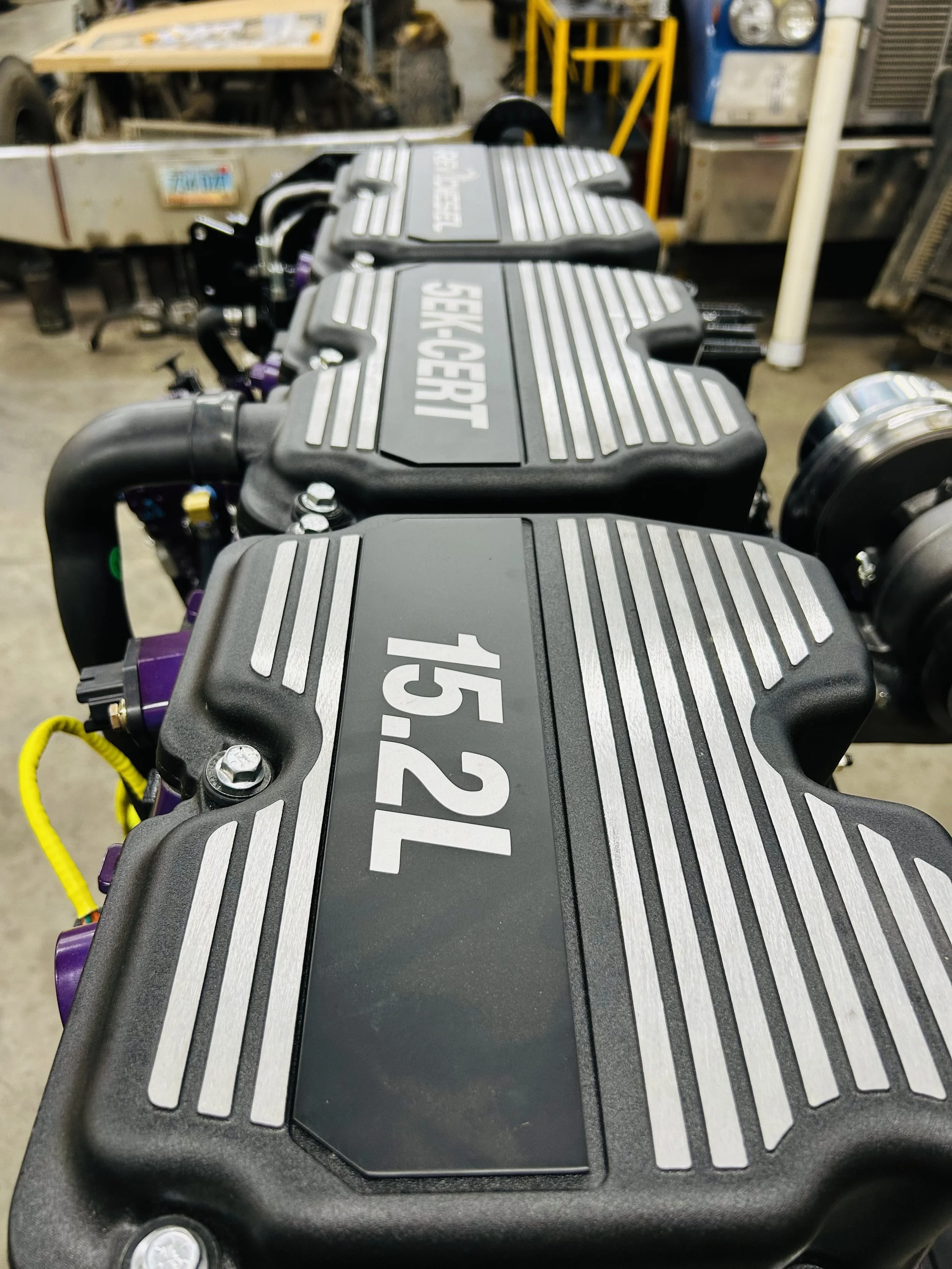

Blue print, balanced, bench started, tested and ran, this 3406E 5EK was built-to-order in 15.2L displacement. Approx. 625 HP & 2100 lb-ft torque while bosting 20% more cooling capacity, 15.2L displacement (improved from 14.6L), custom matched paint, direct 3406E 5EK replacement engine while backed by our 2 yr, 200,000 mile, 8000 operating hour warranty
As with all Rev Diesel engines, this engine went though a rigorous cleaning and inspection process before deemed rebuildable. All liner protrusions set to .006”, within +/- two to four ten thousands of an inch- GARANTEED.
We reman and assemble our crate engines with only the finest parts and equipment available, what we can stand behind. Rev Diesel will provide tech support during installation, and is always available to help with your new engine. $8000 Engine core charge. $2500 Engine Shipping Stand core charge (if applicable). Call or email for your free consultation and to start planning your own build-to-order engine today! Additional Details listed below.
Complete the form below!
Sign up below to for you FREE consultation of your Build-to-Order Engine!
NEW: Pistons, Liners, Shims, Connecting Rods, Main Bearings, Thrust Bearings, Connecting Rod Bearings, Cylinder Head, Cylinder Head Bolts, Injectors, Injector Hold-down Bolts, Rocker Arms, Rocker Shafts, Water Pump, Lubricating Oil Pump, Lubricating Oil Cooler, Thermostats, Gaskets and Seals.
NEW Piston Cooling Nozzles with correct aim set/ verified.
NEW Full Tilt polished exhaust manifold and NEW 78mm x 1.32 Remington Turbocharger with all new nuts, studs and spacers.
Completely Blue Printed and Balanced.
Cylinder block hot tanked, washed, magnafluxed and inspected.
Front and Rear Structure removed, clean and inspect.
Front gear train removed and rebuilt.
NEW Front and Rear Main Seals.
Machined counterbore and liner protrusions set to .006” +/- two to four then thousandths of an inch- GARANTEED.
All thread holes in the block cleaned and chased.
All oil passages brushed and cleaned.
All sealing surfaces machined and cleaned.
NEW Vibratech Crankshaft vibration dampener
Resurfaced Flywheel.
Camshaft gear disassembled, cleaned and rebuilt.
NEW Timing Gear bearings.
NEW Internal and External wiring harnesses.
NEW Braided Stainless Steel Fuel lines
NEW Peanut Cover
Refurbished Valve Covers
Engine will be Primed and Painted to color of choice
Engine will be bench started, ran and tested.
